Pipe-Seal cable penetration

Home  ›  Products  ›  Cable penetrations  ›  Compact seal cable penetrations  ›  Pipe-Seal cable penetration

Features

  • Elements made of stainless steel V2A/AISI 304, V4A/AISI 316Ti
  • Single-layered 30 mm EPDM
  • Double-layered 60 mm EPDM
  • Closed and split versions
  • Tight against pressing water and gas
Contact us ›

Details

Dimension

Installation in:

  • Core-drilled holes
  • Wall sleeves
  • Cable conduits
  • Single/double seal packing DSP 150



fourfold / split

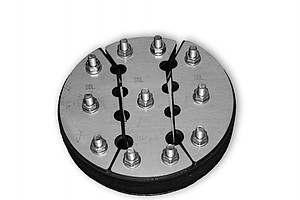

eightfold / split
Pipe-Seal 100 ZWR 4x32

Pipe Seal ZWR F – Multiple penetration with layered ring system

Dimensions

Item nameAdditionNotches for occupation
Pipe Seal ZWR F – DN 100V2A split, single layer 30 mm4 x 5/10/15/20/25/32
Pipe Seal ZWR F – DN 125V2A split, single layer 30 mm5 x 5/10/15/20/25/32
Pipe Seal ZWR F – DN 150V2A split, single layer 30 mm8 x 5/10/15/20/25/32
Pipe Seal ZWR F – DN 200V2A split, single layer 30 mm12 x 5/10/15/20/25/32
3036
